Standard US Military System
Gen II+ or Gen III
Internal Low Battery and IR Indicators
Optional 3x & 5x Lenses
High Light Cut off
Waterproof and Rugged
Combat Proven
Magnification
X4
Lens System
100mm
Field of View
10.3°
Range of Focus
3m to infinity
Diopter Adjustment
+2 to -6
Submergibility
1m. for 30 minutes
Interpupillary adjustment
55mm to 71mm
Battery Type
(2) 1.5V A
Operating Temp.
-30°C to +55°C
Dimensions WxHxL (mm)
152X76X152
Weight (gr.)
850

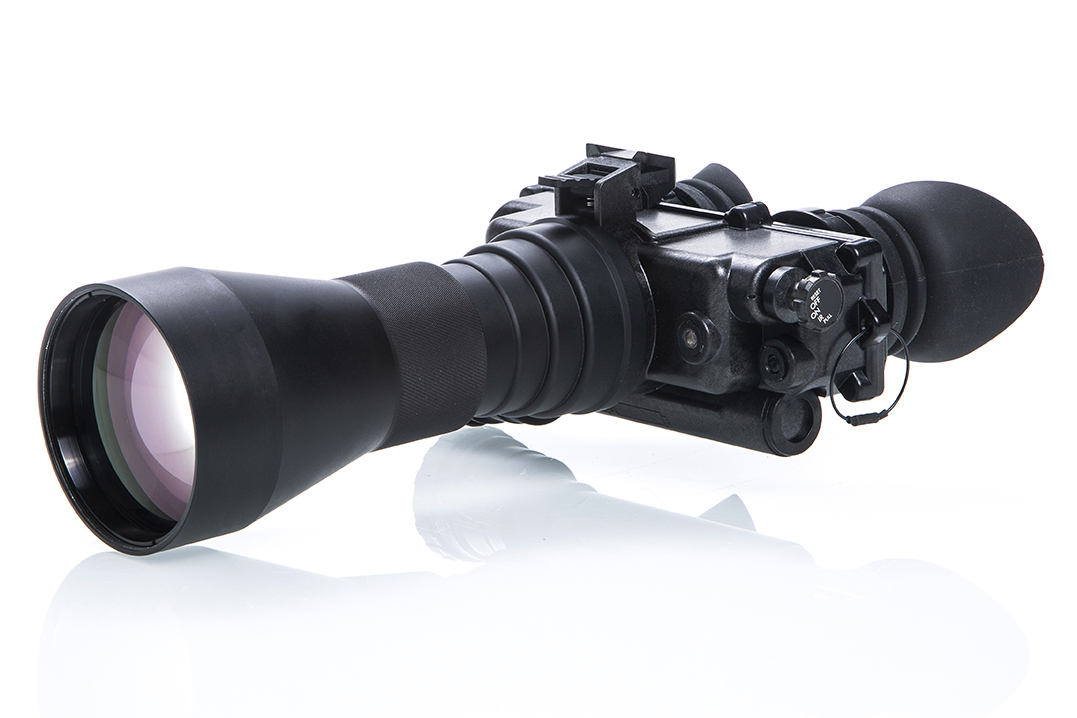

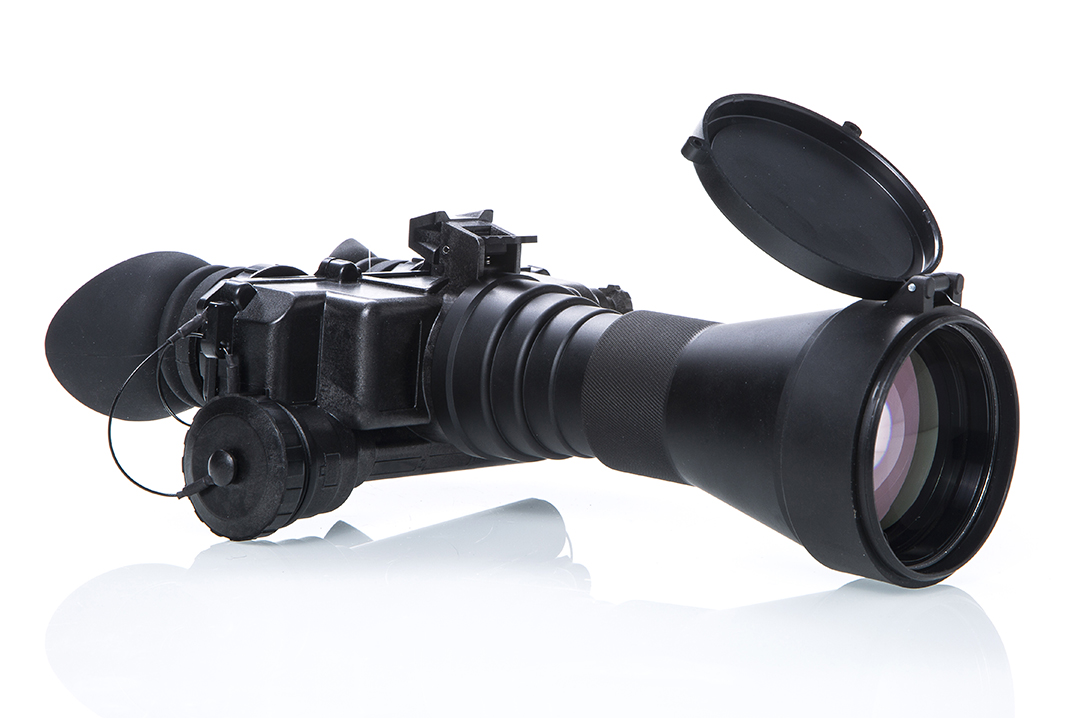

The OE-7 is a high quality mono tube, bi-ocular night vision goggle system providing hands-free operation at low light conditions.
The OE-7’s lightweight injection molded plastic housing and optical components are precisely crafted by a leading manufacturer of Night Vision equipment. The Generation II+ image intensifier tube features Automatic Brightness Control (ABC).
Additional features include IR-On and Low-Battery Indicators. Image clarity is achieved by focusing the front objective while each eyepiece can be independently adjusted for eyesight correction.
The fully adjustable headgear provided allows the OE-7 to be flipped-up or quickly detached from the mask. An IR illuminator is integrated into the system for use in extreme low light conditions. Optional Long Range objectives convert the OE-7 into a useful field binocular.
System comes complete with headgear, soft carrying case, batteries, and user’s manual. System is covered by one-year limited
